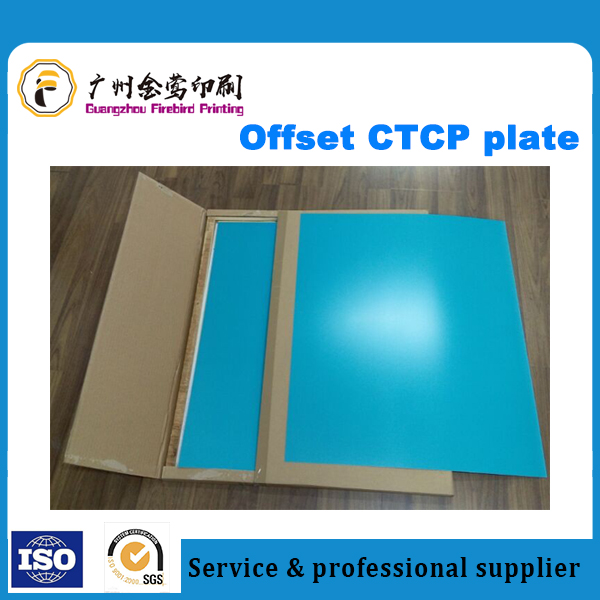

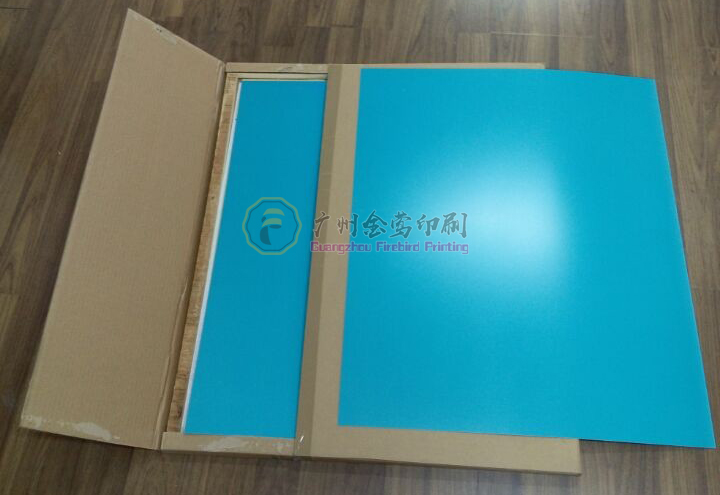

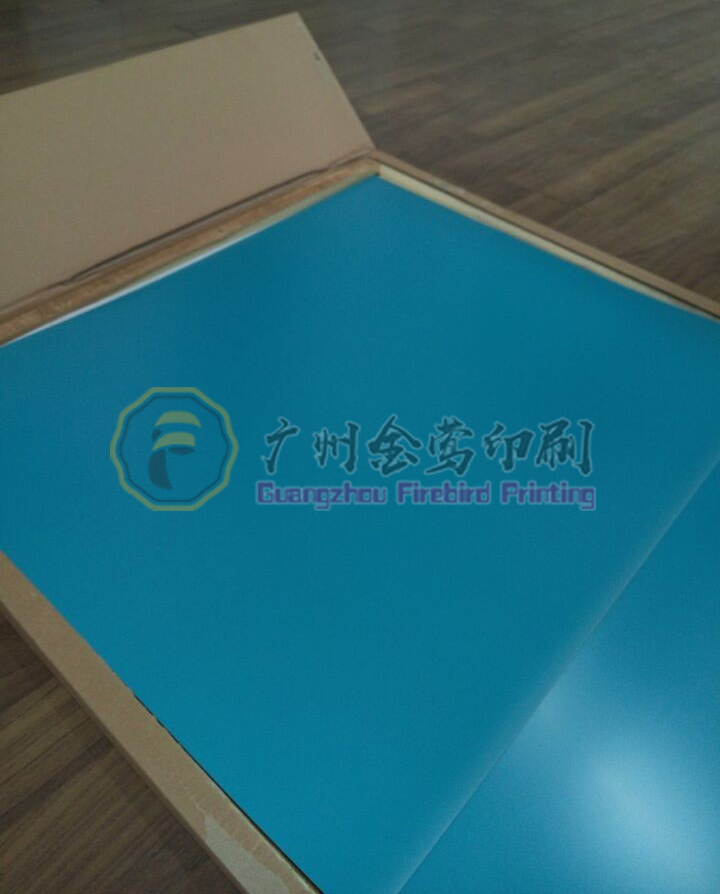

offset CTCP plate / print material / Aluminum Substrate

Plate Style

POSITIVE UV-CTP(CTCP)

Brand Name

FIREBIRD

Plate Color

Blue

Application Type

Newspaper,package and fine commercial printing

Plate Features

Multi layer grains, Seal Pore process ,smooth coating, high sensitive speed, excellent dot

reproduction, large exposure and developing latitude, quick ink water balance, long

impression

Plate precision

Size error range ±0.2mm, good flatness, no burrs in the edge after cutting

Compatible Platesetter

CRON, Baysis, Luscher, Amsky, Ajuhitek and all the other CTCP machine

Plate Thickness

0.15-0.40mm

Maximum coil width available

1450mm( width) * length

Spectral Sensitivity

405nm

Exposure energy

45-55mj/square centimetre

Developing Temperature

25±1℃

Developing Time

25±5S

Safe Light

Under yellow light

Resolution

1-99% at 300lpi

Run Length

More than100000copies(Actual run length vary according to press, ink and paper conditions)

Shelf Life

18 months

Storage Conditions

Temperature 5~30℃,Humidty 40~80%.Away fromsunlight radiation & direct sunlight,Anti-humidity,Anti-acid & alkali,Pack height no more than 1.5 meters.
