Printing plate

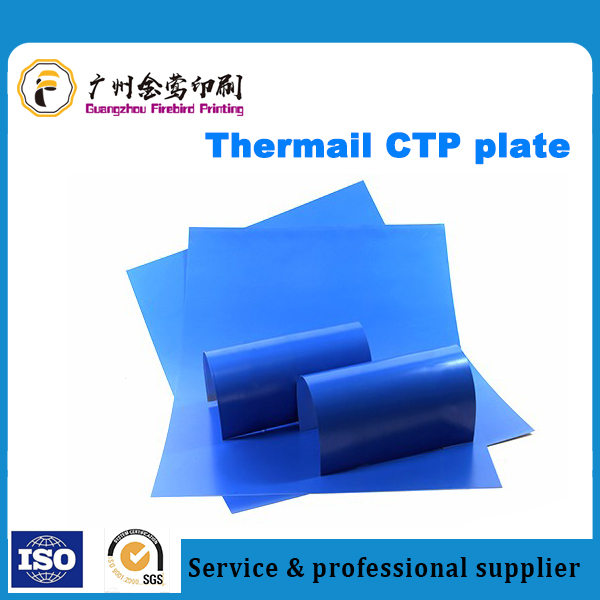

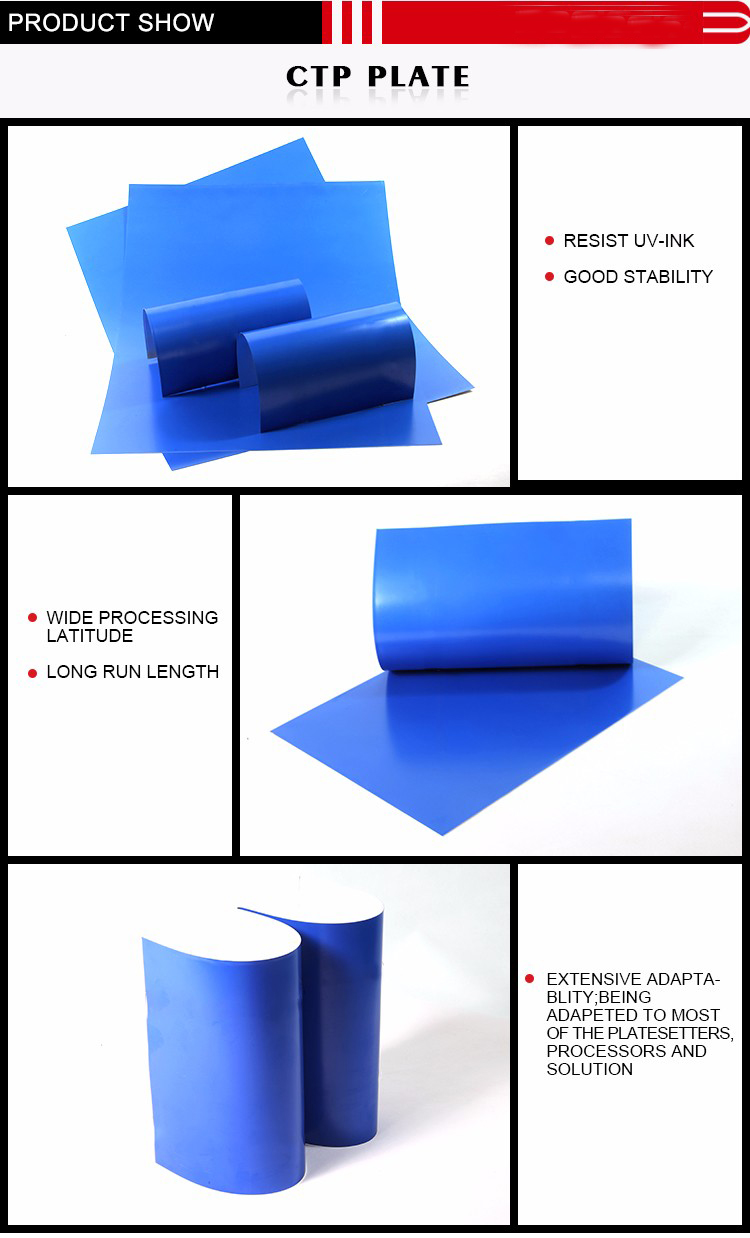

Hot Sale Latest Thermal Offset Ctp Plate
- Type:THERMAIL CTP Plate
- Impression Run:UV INK over 50000 copies,normal over 200000 copies
- Thickness:0.15mm, 0.25mm, 0.30mm
- Develop Time:25±5 Seconds
- Product description: Use:Offset Printing Material:Aluminum Style:Thermail Type:CTP Plate Place of Origin: China (Mainland) Brand Name:Firebird Model Number:CTP-1S COLOR:Dark Blue Develop Time:25±5 Seconds Impress
TECHINICAL DATA SHEET | |||||||||
Product | Double coating thermal CTP plate (CTP-1S) | ||||||||
Thickness | 0.15mm, 0.25mm, 0.30mm | ||||||||
Color | Dark Blue | ||||||||
Spectral of sensitivity | 830nm | ||||||||
Resolution | 1~99%@200lpi | ||||||||
Exposure Energy | 120~140mJ/cm2 | ||||||||
Recommended Developer | BOCICA CTP developer,CTP plate developer divided into Developer (with white lid) and Replenisher (with red lid),Dynamic supplement 80-100ml/m2, static supplement 80ml/ h, | ||||||||
Develop Temperature | 22℃-24℃ | ||||||||
Develop Time | 25±5 Seconds | ||||||||
Impression Run | UV INK over 50000 copies,normal over 200000 copies | ||||||||
Storage Conditions | Keep in cool and try place, the temperature of 5-30℃ | ||||||||
Storage Term |
12 months |
