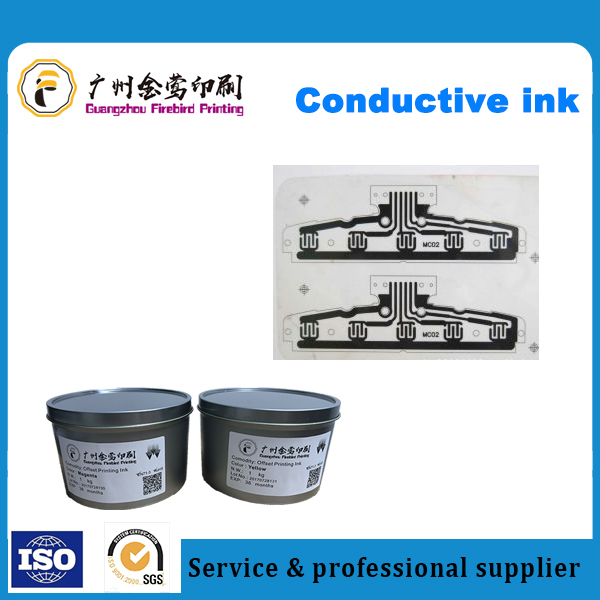

pcb conductive ink,liquid PCB conductive carbon paste ink,Widely Used In Circuit

Bottom materials: thermoplastic resins
Brand Name: FIREBIRD
Viscosity: 70 to 80 poise (25 °C)
Shelf life: 6 months
Product description: 1.Pigment: Silver 2.Bottom materials: thermoplastic resins 3.Viscosity: 70 to 80 poise (25 °C) 4.Specific Gravity: 1.2 5.Solid content: 43% 6.Shelf life: 6 months 7.Sheet resistance: <70Ω / sq
INQUIRY

Specifications

1.Pigment: Silver

2.Bottom materials: thermoplastic resins
3.Viscosity: 70 to 80 poise (25 °C)
4.Specific Gravity: 1.2
5.Solid content: 43%
6.Shelf life: 6 months
7.Sheet resistance: <70Ω / sq (0.025MM)

Packing: 1KG / cans, 5KG / cans

Instructions for use:
Substrate:FB -581 wide range for various electronic membrane switch treated and untreated polyester substrate, especially processed polyester ink attached to the first power of a good, such as UV inks and ink characters insulation. FB-581 can also be used on other substrates, such as polyimide, PVC, ABS, rigid PCB substrate, circuit board or the like;
Printing equipment: FB-581 conductive to determine the weight of the film, may be used 49-90T/CM artificial network, but the resistance will vary with the purpose of the network changes, and the corresponding scraping with a polyester mesh is obtained more good results.
FB-581 in most cases they can be directly used, if you want to reduce the viscosity, can be added as little thinner, but no more than 5%, otherwise it will reduce the dry weight, improve resistance.
Drying: The higher the FB-581 will be dried in order to obtain good results, and a conductive film of high quality, and the drying temperature the longer the time, the lower the resistance.

Cleaning: wash water network YB-04 mesh can be thoroughly cleaned.
