Heidelberg Spare Parts

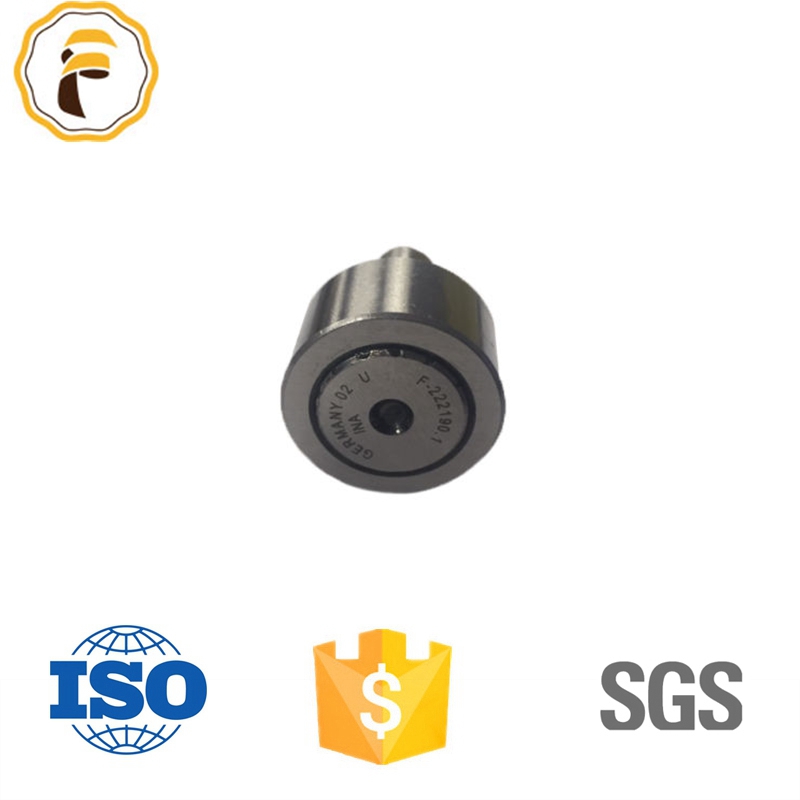

CF3 CF4 CF5 CF6 CF8 Cam Follower for SM52 SM74 offset Press Printing Parts F-222190.1
- Model Number:Bearing F-217813.2
- Use for: SM52 SM74 offset machine
- Use:For Heidelberg Printer
- Part No.:F-222190.1
- Product description: Place of Origin:Guangdong, China (Mainland) Brand Name:FIREBIRD Model Number:Bearing F-222190.1 Type:Bearing F-222190.1 Use:For Heidelberg Printer Printing Type:Offset Printing Machine Bearing N
CF3 CF4 CF5 CF6 CF8 Cam Follower for SM52 SM74 offset Press Printing Parts F-222190.1
CF KR SPECIFICATIONS | |||||||||
Model | Weight | d | D | C | B1 | B2 | G | G1 | |
No Seal | Reference model | (gram) | mm | mm | mm | mm | mm | mm | |
CF 3 | KR10 | 4.5 | 3 | 10 | 7 | 17 | 9 | M3X0.5 | 5 |
CF 4 | KR12 | 7.5 | 4 | 12 | 8 | 20 | 11 | M4X0.7 | 6 |
CF 5 | KR13 | 10.5 | 5 | 13 | 9 | 23 | 13 | M5X0.8 | 7.5 |
CF 6 | KR16 | 18.5 | 6 | 16 | 11 | 28 | 16 | M6X1 | 8 |
CF 8 | KR19 | 28.5 | 8 | 19 | 11 | 32 | 20 | M8X1.25 | 10 |
CF10 | KR22 | 45 | 10 | 22 | 12 | 36 | 23 | M10X1.25 | 12 |
CF10-1 | KR26 | 60 | 10 | 26 | 12 | 36 | 23 | M10X1.25 | 12 |
CF12 | KR30 | 95 | 12 | 30 | 14 | 40 | 25 | M12X1.5 | 13 |
CF12-1 | KR32 | 105 | 12 | 32 | 14 | 40 | 25 | M12X1.5 | 13 |
CF16 | KR35 | 170 | 16 | 35 | 18 | 52 | 32.5 | M16X1.5 | 17 |
CF18 | KR40 | 250 | 18 | 40 | 20 | 58 | 36.5 | M18X1.5 | 19 |
CF20 | KR47 | 460 | 20 | 47 | 24 | 66 | 40.5 | M20X1.5 | 21 |
CF20-1 | KR52 | 385 | 20 | 52 | 29 | 66 | 40.5 | M20X1.5 | 21 |
CF24 | KR62 | 815 | 24 | 62 | 29 | 80 | 49.5 | M24X1.5 | 25 |
CF24-1 | KR72 | 1,140 | 24 | 72 | 29 | 80 | 49.5 | M24X1.5 | 25 |
CF30 | KR80 | 1,870 | 30 | 80 | 35 | 100 | 63 | M30X1.5 | 32 |
CF30-1 | KR85 | 2.03 | 30 | 85 | 35 | 100 | 63 | M30X1.5 | 32 |
CF30-2 | KR90 | 2,220 | 30 | 90 | 35 | 100 | 63 | M30X1.5 | 32 |

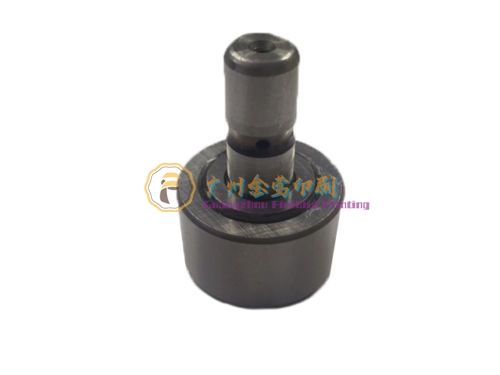

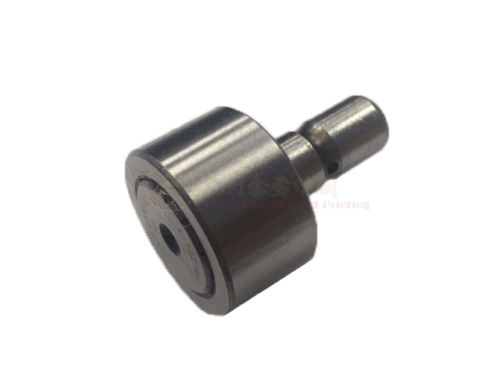

Features of CF Track Roller Bearings
CF KR stud and bolt type cam follower , rod end bearing Stud type track rollers are similar in their construction to single and double row yoke type track rollers, except that the raceway is formed by a heavy-section roller stud with a fixing thread and lubrication hole.
Due to the thick-walled outer ring with profiled outside surface and the rolling element set, they can support high radial loads as well as axial loads arising from slight misalignment and skewed running; they are suitable for applications such as cam gears, bed ways and conveying equipment.

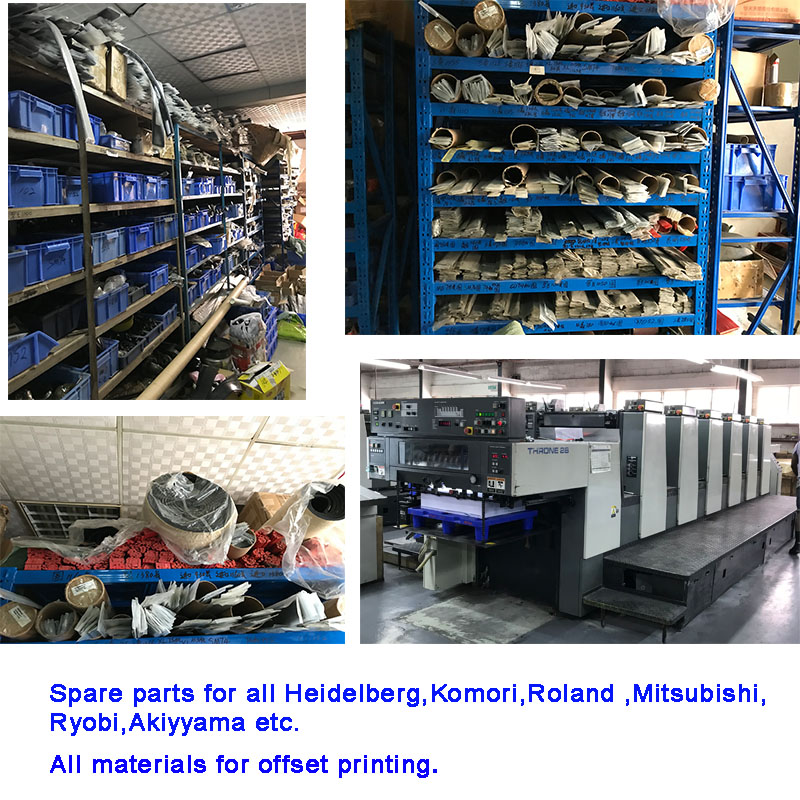

We are a professional offset printing machine parts manufacturer in Guangzhou, China.
Looking for more printing machine parts, welcome to contact us.
whatsapp+86-15915858038 susan
email:susan@firebirdprint.com
