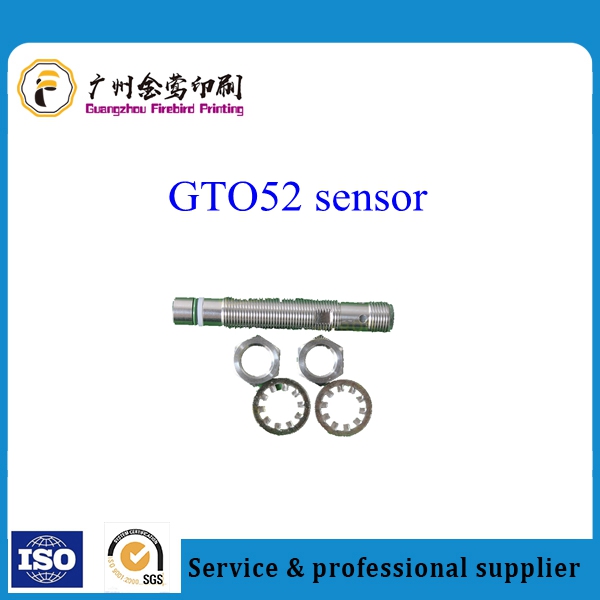

GTO 52 LR12 series M12 position sensors Inductive Proximity Sensor switch CE UL dc voltage sensor

GTO 52 LR12 series M12 position sensors Inductive Proximity Sensor switch CE UL dc voltage sensor

Place of Origin: Guangdong, China (Mainland)
Type: Double sheet sensor
apply to: GTO 52
Brand Name: FIREBIRD
Product description: Place of Origin: Guangdong, China (Mainland) Brand Name: FIREBIRD Model Number: FB-HE-FB Type: Heidelberg Double sheet sensor
INQUIRY

Information

	Features Non contact detection, safe and reliable; ASIC design; Perfect choice for metallic targets detection;
Part number
NPN NO LR12XBF02DNO LR12XBN04DNO	PNP NO LR12XBF02DPO LR12XBN04DPO
NPN NC LR12XBF02DNC LR12XBN04DNC	PNP NC LR12XBF02DPC LR12XBN04DPC
NPN NO+NC LR12XBF02DNR LR12XBN04DNR	PNP NO+NC LR12XBF02DPR LR12XBN04DPR
Technical specifications
Mounting Flush Non-flush	Leakage current [lr] ≤15mA
Rated distance [Sn] 2mm 4mm	Circuit protection Short-circuit, overload and reverse polarity
Assured distance [Sa] 0…1.6mm 0…3.2mm	Output indicator Yellow LED

Dimensions M1263mm M1267 mm	Ambient temperature -25℃…70℃
Output NO/NC(dependson part number)	Ambient humidity 35-95%RH
Supply voltage 10…30 VDC	Switching frequency [F] 1500 Hz 1000 Hz
Standard target Fe 12121t Fe 12121t	Voltage withstand 1000V/AC 50/60Hz 60s
Switch-point drifts [%/Sr] ≤±10%	Insulation resistance ≥50MΩ(500VDC)
Hysteresis range [%/Sr] 1…20%	Vibration resistance 10…50Hz (1.5mm)
Repeat accuracy [R] ≤3%	Degree of protection IP67
Load current ≤200mA	Housing material Nickel-copper alloy

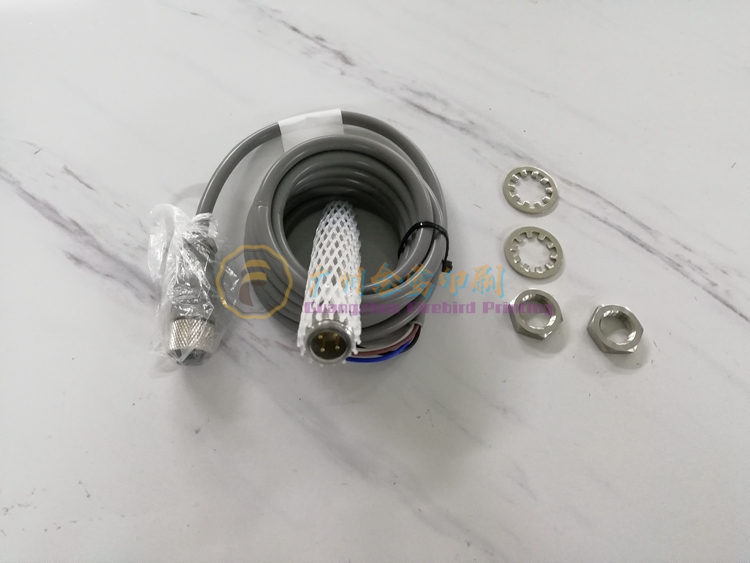

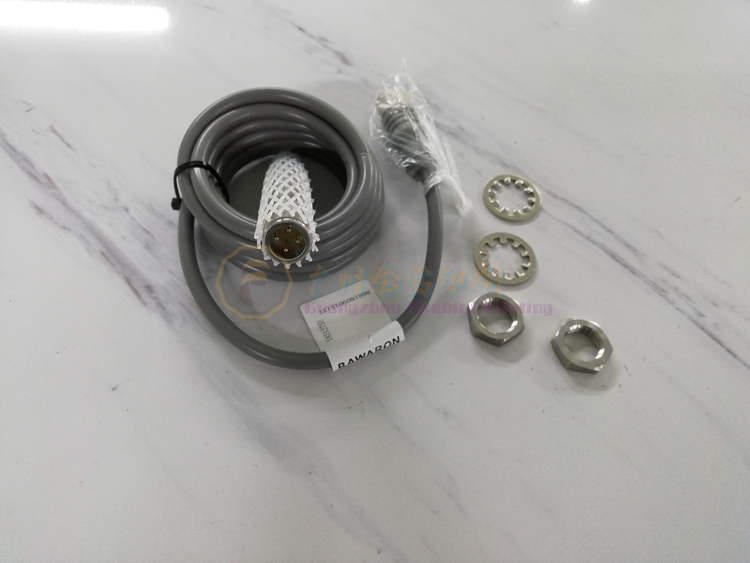

Residual voltage ≤2.5V	Connection type 2m PVC cable
Dimensions	Wiring diagram
