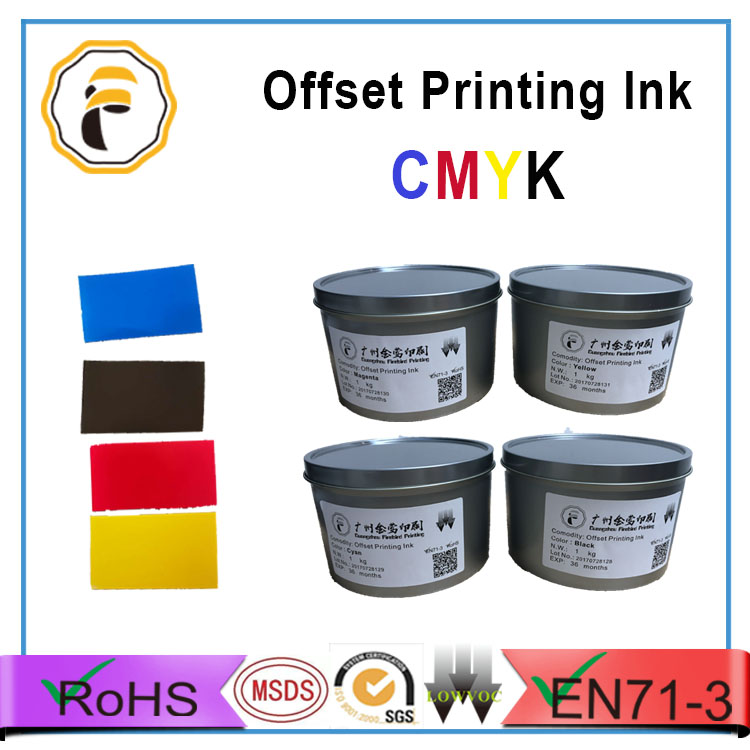

Offset Ink

sheetfed offset printing ink

Type: Sheetfed Offset Printing Ink
Printing Type: Offset Printing
Color: CMYK
Application: paper, book , carton, newsaper
Product description: ype: Sheetfed Offset Printing Ink Printing Type: Offset Printing Place of Origin: Guangdong, China (Mainland) Brand Name: Firebird Color: M,Y,C,K Certificate: MSDS/ISO9001/SGS Application:
INQUIRY

Specifications

1.High gloss and density of color.

2.Fast drying , stability on printing press.

3.Rich layering,good reappearance of half-tones

4.Water abd rub resistance.

5.Conforming to the standard of EN71-3,RoHS.

6.Eco-friendly ink for oddset printing , soy based ink , contain more that 25% of soy oil and other plant oil , high technology to make high stability.

Ink’s Property

Item Color	Yellow	Magenta	Cyan	Black
T.V	10-11.5	10-11.5	10-11.5	10-12
Flow	7.0±2.0	8.0±2.0	8.0±2.0	7.0±2.0
Rub Resistance	85	80	80	85
Gloss	78±3	75±3	73±3	75±3
Particle Size	Under 12.0	Under 11.0	Under 12.5	Under 11.0
Set Time	≤ 3 min	≤4 min	≤ 5 min	≤ 7 min
Paper Drying Time	≤4 hr	≤5 hr	≤ 6 hr	≤ 6 hr
Skinning Time	≥96	≥60	≥96	≥ 72

Test Method :

Viscosity(S.M.):measured by Spread -0-meter(10 sec.)

Tackiness Value (T.V.):measured by Ink-0-meter at 400 r.p.m./30℃

Flow (SR value):measured by Spread -0-meter (⊿10-100 sec.)

Gloss Value :measured by Gloss meter at 60 ℃ angle

Particle Size :measured by Grinding gauge (N.P.L.R.I)

Drying Time :drying time on glass (press)and on paper / 25℃

PS:

The above data all are tested out by Guangzhou Printing Area Trading Co., Ltd Lab,only for your reference.Because of different instrument and environment ,it would be have different result.
